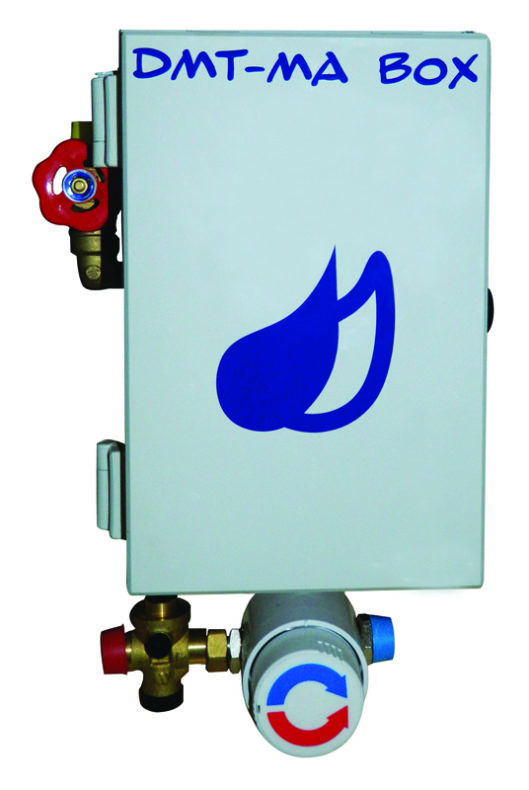

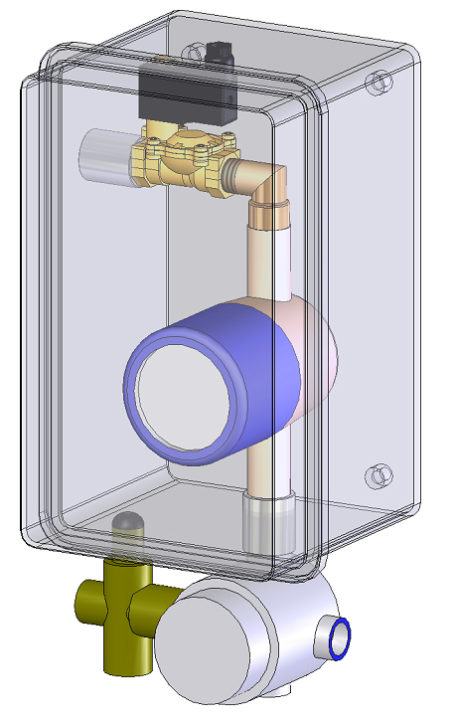

DMT-MA BOX mixer water meter

Questions and price queries
CONTACT US

×

    * Field required

    This site is protected by reCAPTCHA and the Google
    Privacy Policy and
    Terms of Service apply.

    • Automatic dispensing with manual cold water / hot water mixing
    • Dispensing precision +/- 2%
    • Determination of volume from 0,1 to 999 litres
    • Dispensing unit: 0,1 litres
    • Instant temperature variation
    Dimensions
    HEIGHT 420 mm
    WIDTH 260 mm
    DEPTH 200 mm

    This water meter is intended for an installation with chiller equipped with a booster pump (pressure required: 2 bars).

    The DMT-MA Box water meter is only suitable for chillers in the OPTIMAX with pump and AGD ranges.

    Terms of use:
    Temperature range 0°C to 35°C
    Nominal flow rate: 15 litres per minute
    Automatic stoppage
    Pouring temperature display
    Temperature adjustment via thermostatic mixing valve on front pane
    Supply voltage: 240V single-phase 50Hz
    Accessory: dispenser outlet pipe with mixing trough attachment bar and pressure reducer on hot water inlet.
