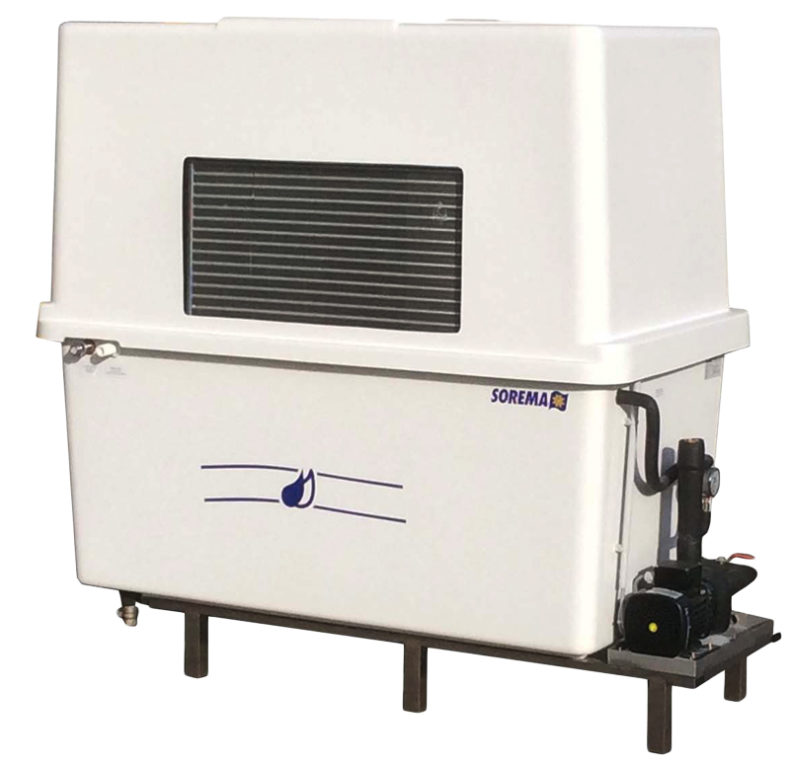

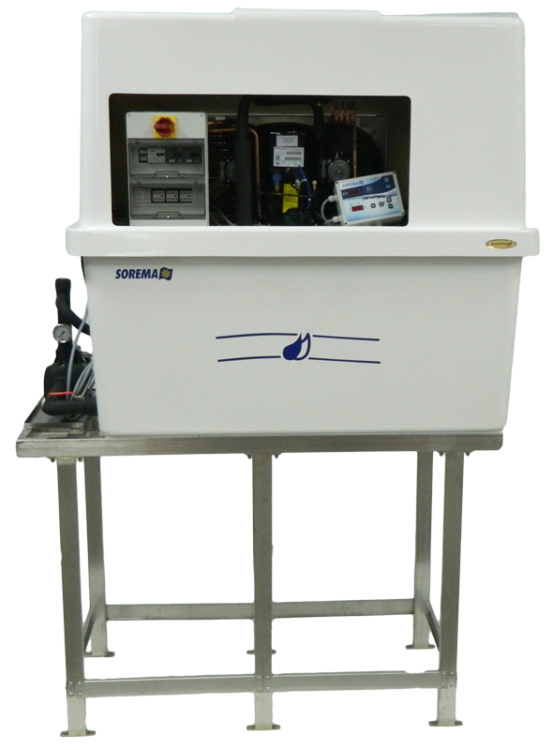

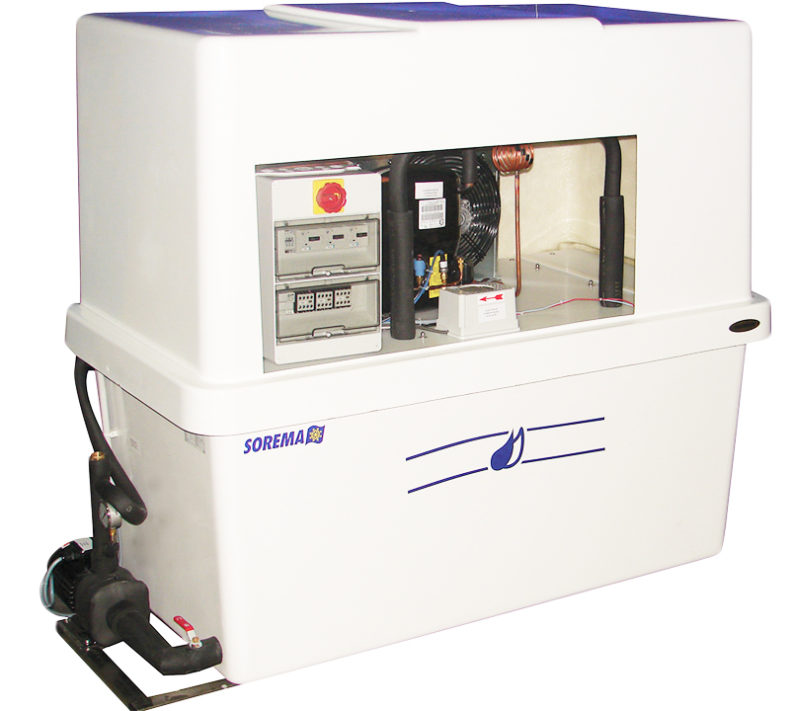

AGD chiller 110 to 250 P

• Feedwater output up to 0.5°C
• Integrated water circulation pump
• Remote control unit for managing automatic dispensing options and cold water / hot water mixing
• Large-capacity insulated water tank
• Food-grade materials and water
Questions and price queries

    * Field required

    This site is protected by reCAPTCHA and the Google
    Privacy Policy and
    Terms of Service apply.

    HEIGHT 1370 mm
    WIDTH 1660 mm
    DEPTH 830 mm

    * Clearance height required: + 500 mm

    These chillers have been developed for semi-industrial capacities. They are complemented by water dispensing options:

    – DM BOX single automatic dispenser
    – DMT-MA Box cold water/hot water mixer dispenser for instant temperature variation (with pump)

    Output capacity: 110 to 250 litres / hour
    Water inlet temperature +20°C
    Water outlet temperature +1°C

    Output capacity: 180 to 500 litres / hour
    Water inlet temperature +15°C
    Water outlet temperature +5°C

    Tank volume: 400 L

    Empty weight: 170 to 200 kg (from 590 to 620 kg in operation)

    Electrical power in kW: 2 to 4.5

    Supply voltage: 230V-1ph-50Hz and 400V-3ph-50Hz

    – Stainless steel frame with 15 cm feet and complete drainage.
    – Tropical version
    – Glycol water version
