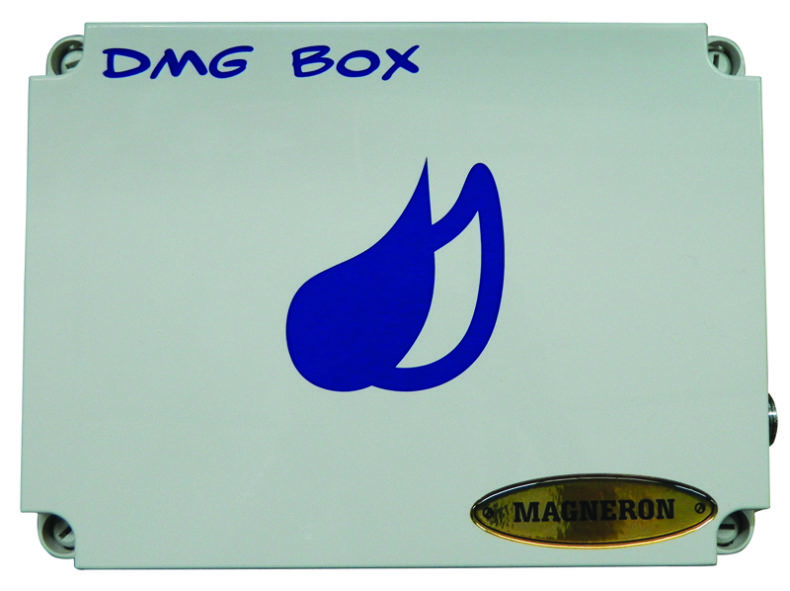

DMG-BOX gravity water meter

Questions and price queries
CONTACT US

×

    * Field required

    This site is protected by reCAPTCHA and the Google
    Privacy Policy and
    Terms of Service apply.

    • Automatic single dispensing
    • Gravitational operation
    • Dispensing precision +/- 2%
    • Determination of volume from 0.1 litres to 999 litres
    • Dispensing unit: 0.1 litres
    Hydraulic section:
    HEIGHT 240 mm
    WIDTH 350 mm
    DEPTH 130 mm

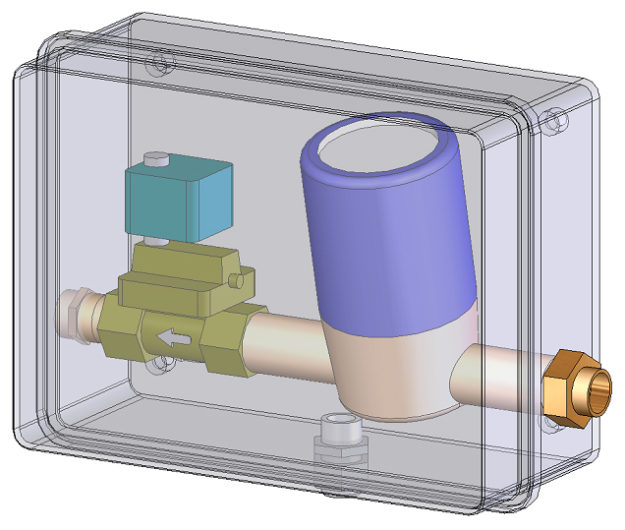

    Device enabling single dispensing using gravity, with electronic metering and automatic stoppage of water volume without control of process water temperature.

    The DMG Box water meter is only suitable for chillers in the OPTIMAX range without pump.

    Terms of use:
    Water temperature below 35°C
    Nominal flow rate: 8 litres per minute at 0.05 bar
    Supply voltage: 240V single-phase 50Hz
    Accessory: dispenser outlet pipe with mixing trough attachment bar.

    Dimensions:
    W. 350 mm x D. 130 mm x H. 240 mm (hydraulic section)
    Weight: 7 kg
