• Air condensation
• Scroll compressors
• Complete hydraulic circuit: tank, pump, manometer, flow controller, etc.
• Guaranteed energy saving

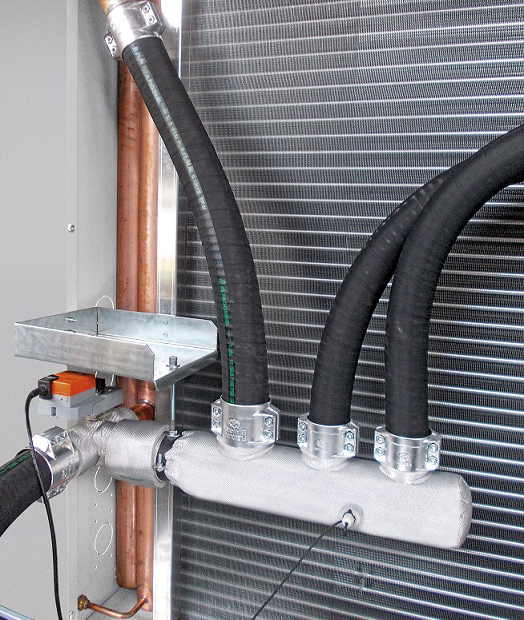

– The chiller is equipped with a “FREE-COOLING” system to save energy by using outdoor air when weather conditions permit.
The regulation system compares the outdoor temperature, the glycol water temperature at the “free-cooling” battery input, and the “free-cooling” (Delta) setpoint, in order to support total or partial chilling using ambient air, thereby reducing the use of refrigeration compressors and therefore the electric energy consumed.

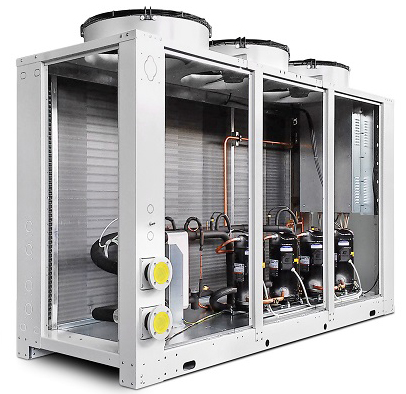

– Compressor: Scroll type
– Evaporator : Coaxial exchanger immersion type (ENRF 22 to 100) or multi-tubular type (ENRF 130 to 370)
– Air condenser: Battery of copper tubes and aluminium fins
– Fan: Helical type
Thermostatic pressure-reducing valve
Liquid solenoid valve
High-pressure safety switch
High-pressure manometers & Low pressure manometers

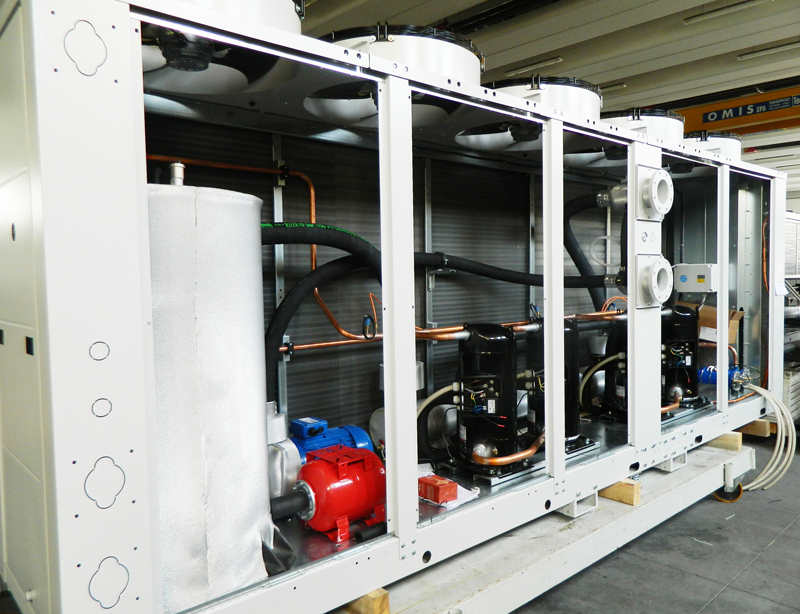

Complete steel hydraulic circuit including:
Steel pressurised buffer volume (stainless steel as optional extra)
2.1 bar centrifugal pump
Flow controller for evaporator protection

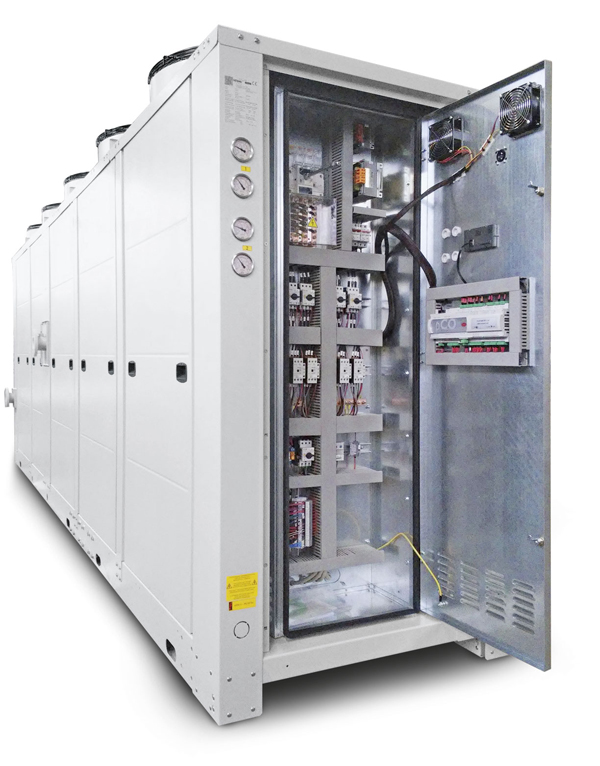

Regulation : CAREL µC² microprocessor, with digital display
