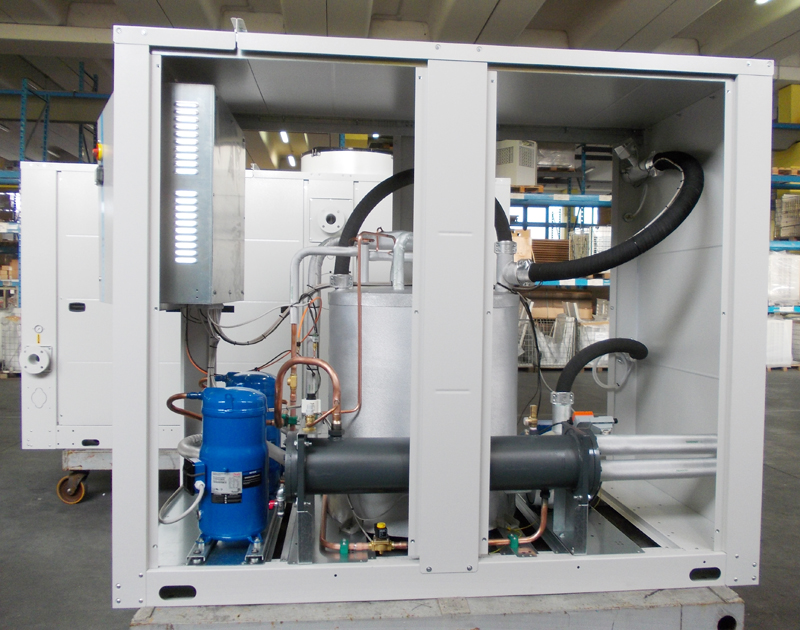

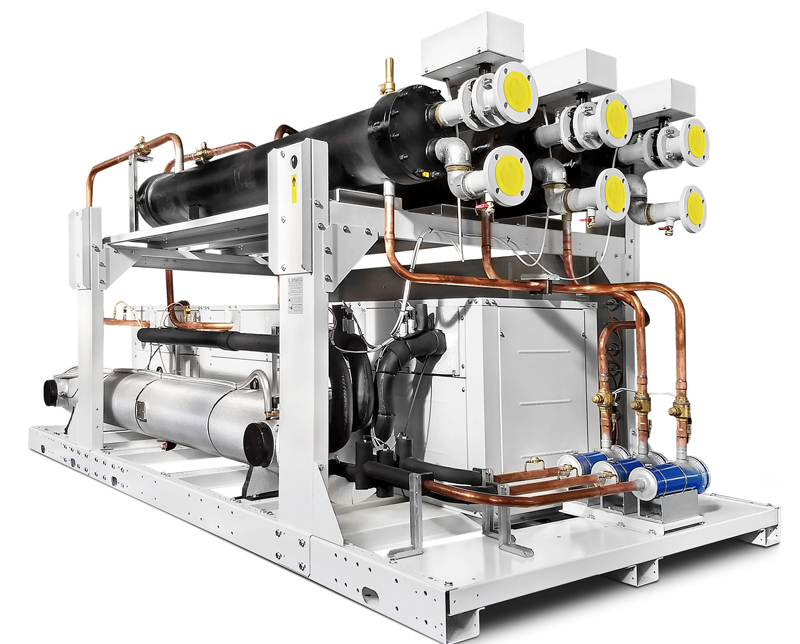

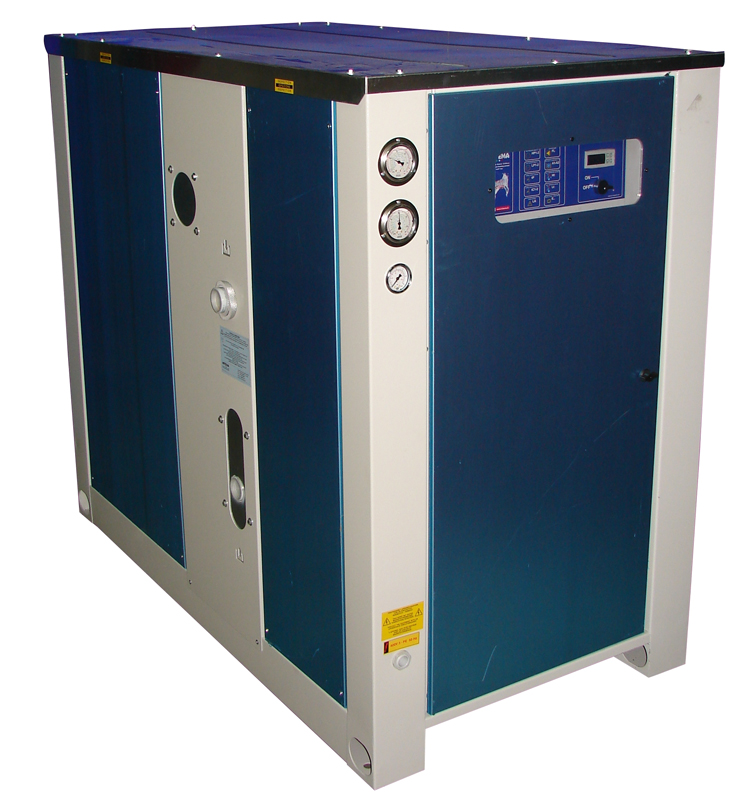

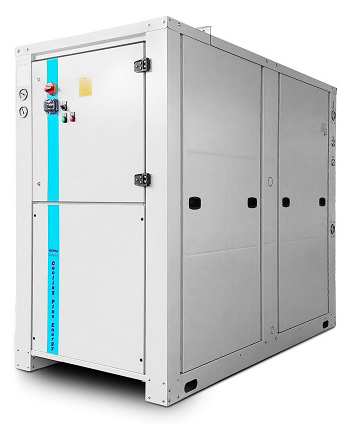

HITEMA chiller ENW series 3 kW to 450 kW

• Water condenser
• Complete hydraulic circuit: tank, pump, by-pass, etc.
• Highly energy efficient
Questions and price queries

    * Field required

    This site is protected by reCAPTCHA and the Google
    Privacy Policy and
    Terms of Service apply.

    Compressor(s) : Hermetic or scroll type according to model and manufacture

    Insulated buffer tank immersion type (ENW 003 to 100)
    Multi-tubular type (ENW 100 to 480)
    Soldered stainless steel plate type (optional extra)

    Water condenser: with soldered stainless steel plates

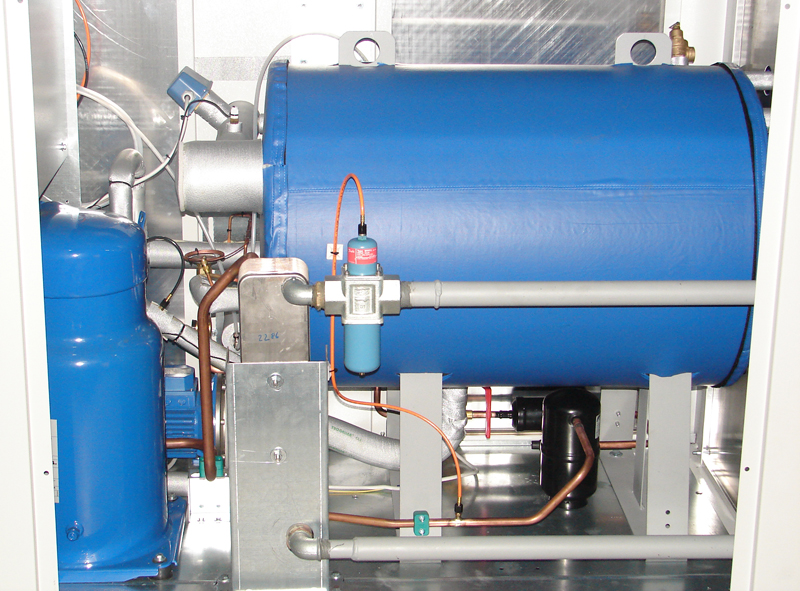

    Refrigeration circuit components:
    Expansion capillary (according to model)
    Thermostatic pressure-reducing valve (according to model)
    Condenser pressure-switch regulation valve
    Dehydrating filter
    Liquid indicator
    Liquid solenoid valve (according to model)
    HP/BP safety pressure switch(es) (according to model)
    HP/BP manometer(s) (according to models and optional extra)

    Complete hydraulic circuit:
    Steel buffer volume (or stainless steel as optional extra)
    Pressure-relief valve for pressurised circuit (according to model)
    Water manometer (according to model)
    Flow controller for evaporator protection (according to model and optional extra)
    Automatic air vent valve (according to model)
    By-pass (optional extra)

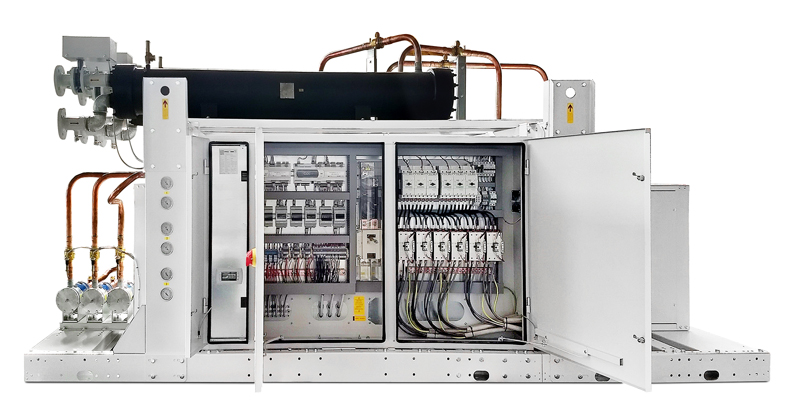

    Basic electronic regulator with digital display (according to model)
    Microprocessor with digital display (according to optional extra)
