SOREMA water chiller SMC series - with air/water exchanger 600 to 4800 W

Questions and price queries
CONTACT US

×

    * Field required

    This site is protected by reCAPTCHA and the Google
    Privacy Policy and
    Terms of Service apply.

    • Air chilling
    • Simple installation next to machines
    • Reduced electrical consumption
    • Compact system
    • Automatic water back-up
    FABRIQUÉ À CHOLET
    HAUTEUR 510 mm
    LARGEUR 850 mm
    PROFONDEUR 450 mm
    HAUTEUR 570 mm
    LARGEUR 810 mm
    PROFONDEUR 660 mm

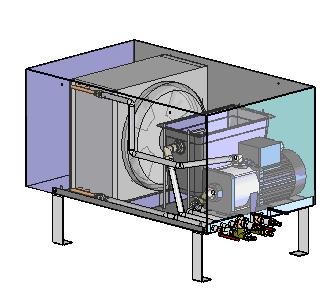

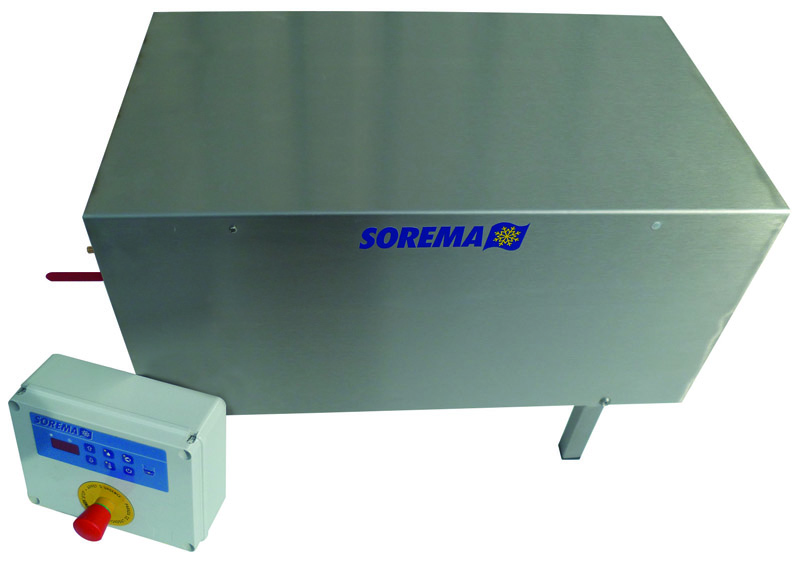

    Stainless steel body industrial water chiller, with atmospheric pressure tank, without refrigeration unit, with air/water exchanger. Ideal for chilling a water loop using ambient air. Designed for recycled-water chilling of packaging machines of sealing-thermoforming type, located in a refrigerated environment.

    Water chilling by exchange with ambient air (ambiance of +2°C à +12°C).
    Body and frame on feet made from stainless steel.
    Stainless steel buffer tank (open) with return loop and lid.
    Enables water elimination from machines using an air extractor.
    Automatic filling by float valve.
    Level safety: a float contact detects insufficient water in the tank.
    Ventilated battery type water/air exchanger.
    Water distribution pump

    Option:
    Optional lost water compensation valves

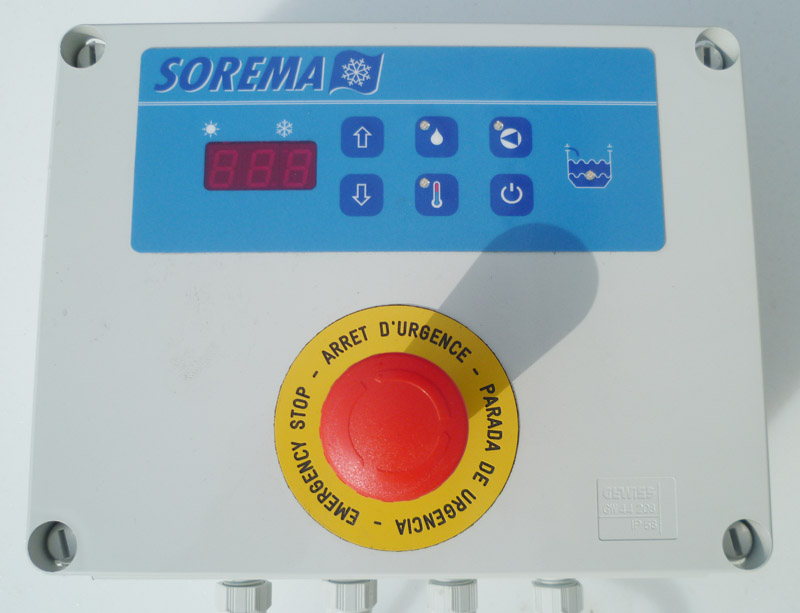

    Optional electrical cabinet

    Max. electrical power absorbed : 625 Watts – 775 Watts

    Hydraulic connections: 12-17 (3/8’’)

    Water flow: 300 litres/hr – 400 litres/hr

    Empty weight: 40 kg – 53 kg
